Citytunnel Malmö, Sweden - The southern entrance area was constructed using the cut-and-cover method for a length of around 1.5 km.

Citytunnel Malmö
Malmö, Sweden

Railway tunnel with subterranean stations, station expansion and entrance area

Design: the tunnel section is being built using the cut-and-cover method; the semi-monolithic method in the trough construction procedure
Internal width: up to 21.00 m
Internal height: 7.20 m to 9.85 m





Asukoht
Malmö
Kategooria
Tellingute projektid
Projekti osalejad
Klient: NCC Construction Sverige AB (Malmö C Nedre, E101) ARGE MCG Malmö Citytunnel (Entrance Area E201); Bilfinger Berger AG, Per Aarsleff A/S, E. Pihl & Son A.S.

Projekti ülevaade

Rohkem infot projektist
1 /
5
Citytunnel Malmö, Sweden - The southern entrance area was constructed using the cut-and-cover method for a length of around 1.5 km.
Citytunnel Malmö, Sweden - The southern entrance area was constructed using the cut-and-cover method for a length of around 1.5 km.

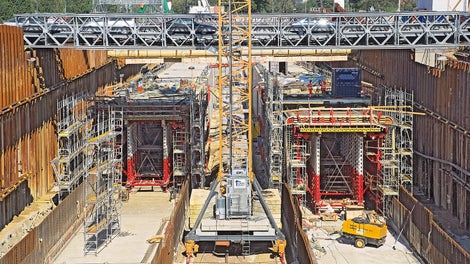

The southern entrance area was constructed using the cut-and-cover method for a length of around 1.5 km. With the two PERI formwork carriages, the walls and slabs of the two separate tunnels could be cost-effectively concreted in one pour.

Nõuded ja lahendused

Nõuded
Maximum watertightness thanks to no construction joints in the area of the bottom plate up to 1.10-m-thick tunnel top slab 4.70-m-wide passageway for site traffic vaulted sections in the external areas 0.60 to 3.15-m-high beams in the centre of the tunnel
Lahendused

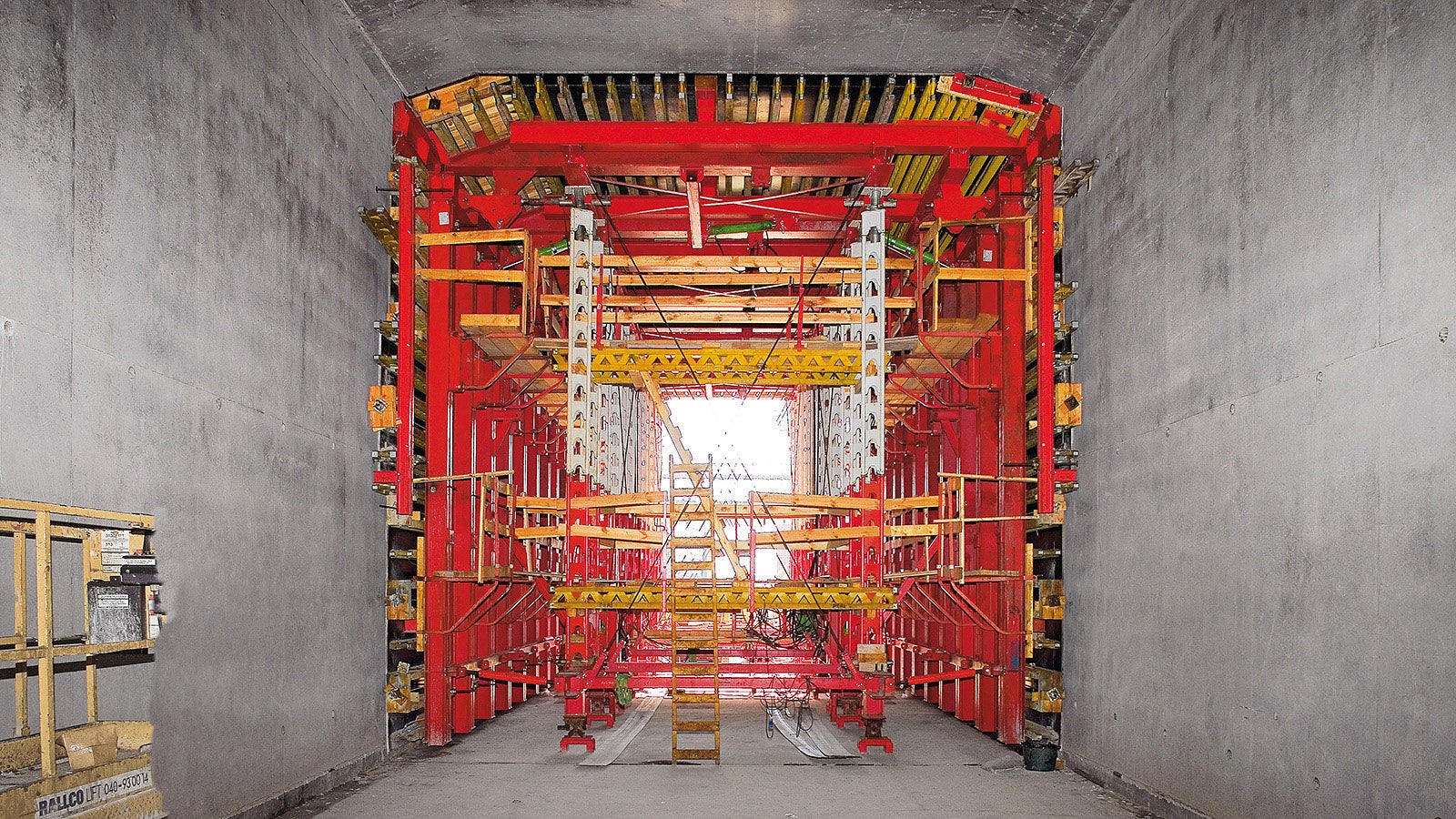

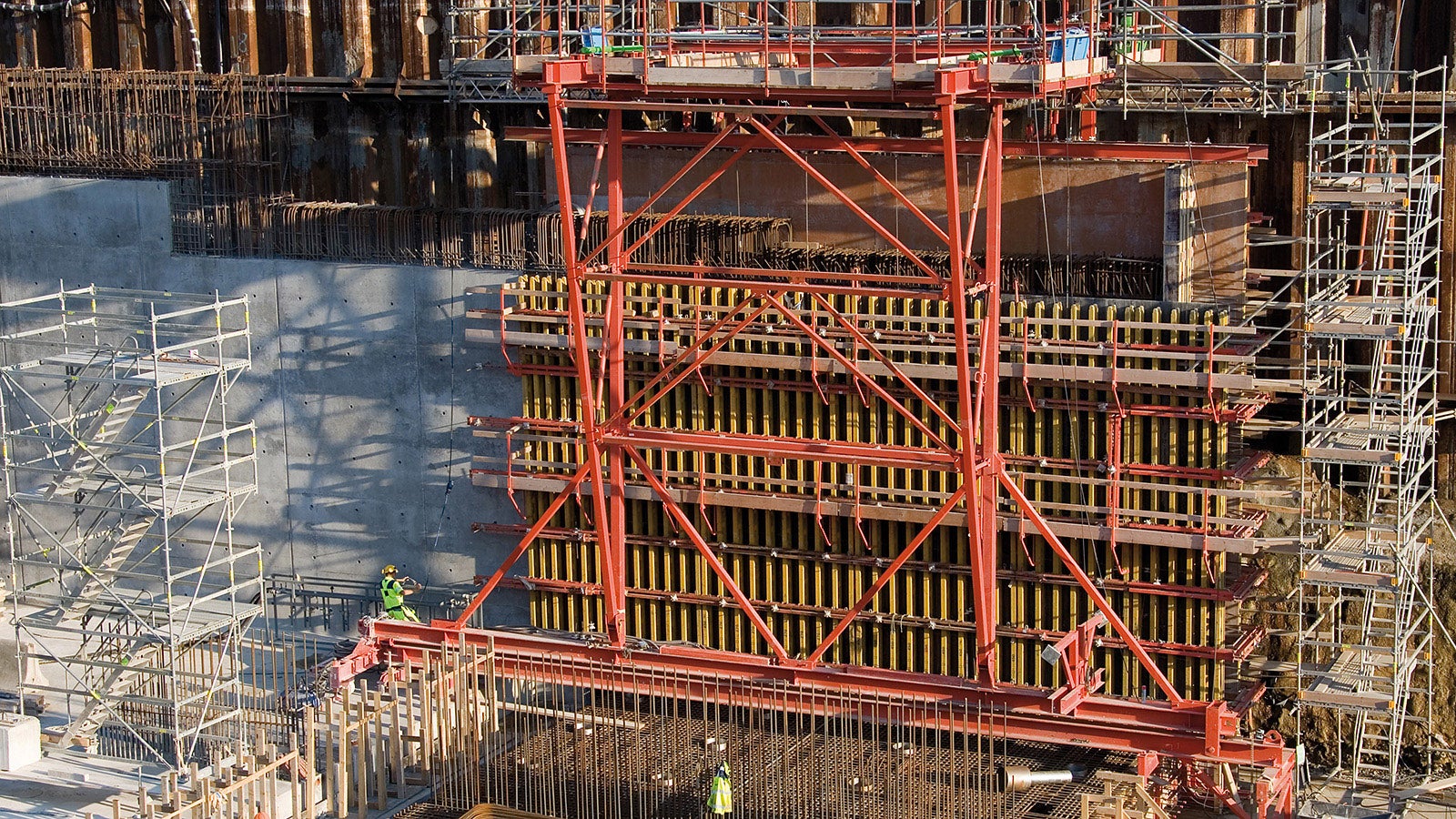

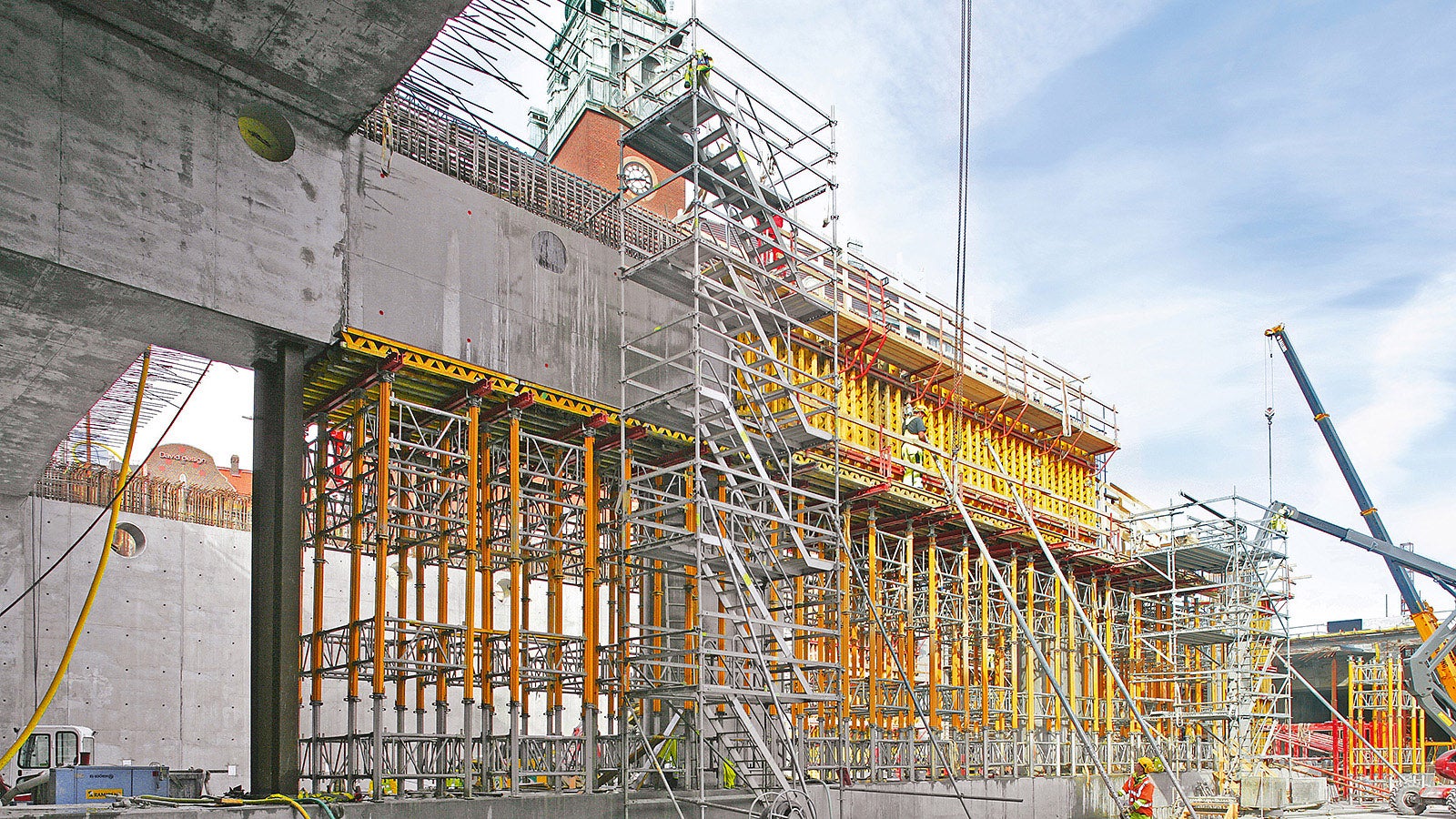

Combination consisting of project-specific formwork carriage constructions and rentable PERI system equipment: 2 formwork carriages for the casting segment in advance, two subsequent slab formwork carriages and a VARIO solution for the elliptical reinforced concrete columns along the tunnel centre. Additionally, two formwork carriages for the southern entrance area with two parallel tunnel constructions.
Lisaväärtus

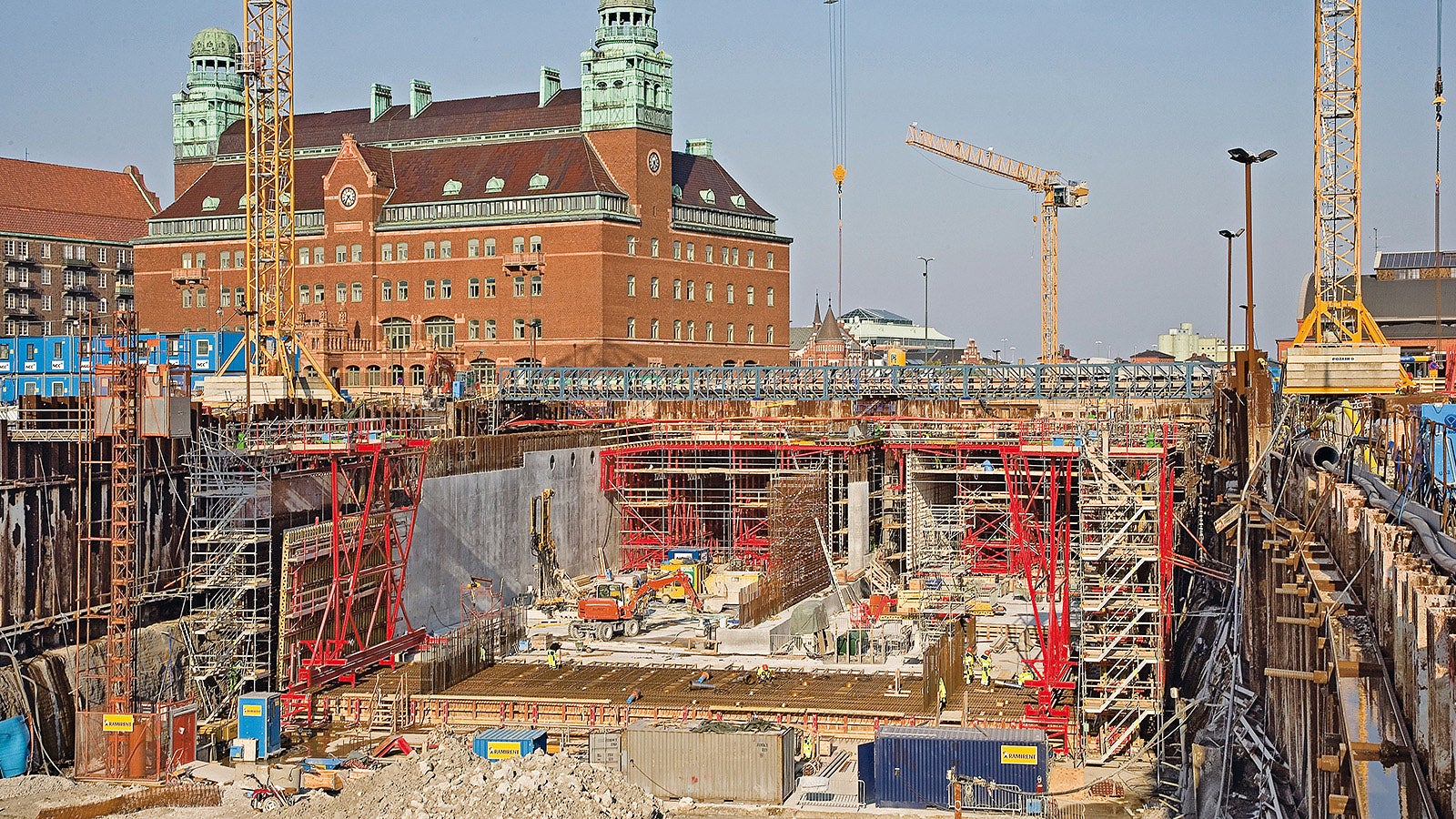

A 10-day cycle thanks to economical combination consisting of special constructions and rentable system equipment.
Citytunnel Malmö Statement - Magnus Jakobsson, Site Manager E101
Citytunnel Malmö Statement - Magnus Jakobsson, Site Manager E101
Magnus Jakobsson
Site Manager E101
The bottom plate, walls and slabs could be constructed in 10-day cycles with the PERI tunnel formwork.  PERI has always provided us with the best solution.
